고속 판금 접기: 기계, 공구 및 공정 제어
고속 판금 접기는 품질이나 안전을 희생하지 않으면서 시간당 더 정확하게 구부러진 부품을 만드는 데 중점을 둡니다. 이를 달성하기 위해, 적절한 기계가 필요합니다, 스마트 프로그램, stable tooling, and a disciplined process from quoting to final inspection.
What is high speed sheet metal folding?
High speed sheet metal folding means bending parts at a high throughput while keeping angle accuracy, 반복성, and surface quality under control.
목표는 단순합니다: more good parts in less time.
실제로는, it usually means:
- Shorter cycle time per bend
- Fewer manual adjustments
- Minimal rework and scrap
- Stable angles across the whole batch
많은 상점들, “high speed” is not only fast ram movement. It also includes:
- Fast job changeover
- Quick tooling change and set-up
- Smooth material flow in and out of the bending area
When people search for high speed sheet metal folding, they usually want:
- To understand which machines and controls can support faster bending
- To compare folding machines vs press brakes for productivity
- To see which parameters really drive speed and consistency
- To find a supplier that can deliver high speed bending machines or lines
High speed sheet metal folding vs standard bending
High speed sheet metal folding is different from basic bending in three main ways:
- Cycle time
Ram speed, backgauge speed, and tool change time are optimized to reduce seconds per bend. - Automation level
You often see automatic backgauges, 시트 팔로워, robots, and integrated part handling on high speed folding lines. - Process stability
도구, 조작, and material data are set up so that angles stay consistent even as tools heat up or batches change.
많은 경우, a high speed sheet metal folding line will combine:
- A CNC press brake or panel bender
- 거의, multi‑axis backgauges
- 오프라인 프로그램
- Standardized tooling packages
- Material libraries and automatic crowning
If you are comparing brands, a good starting point is to review leading CNC press brake manufacturers and understand which models are designed for fast production and automated bending lines. You can use a curated list of top CNC press brake brands to narrow your options before contacting suppliers.
Core factors that drive high speed sheet metal folding
Several technical factors determine how fast you can fold parts while still keeping quality under control. High speed sheet metal folding depends on all of these working together, not just one single machine feature.

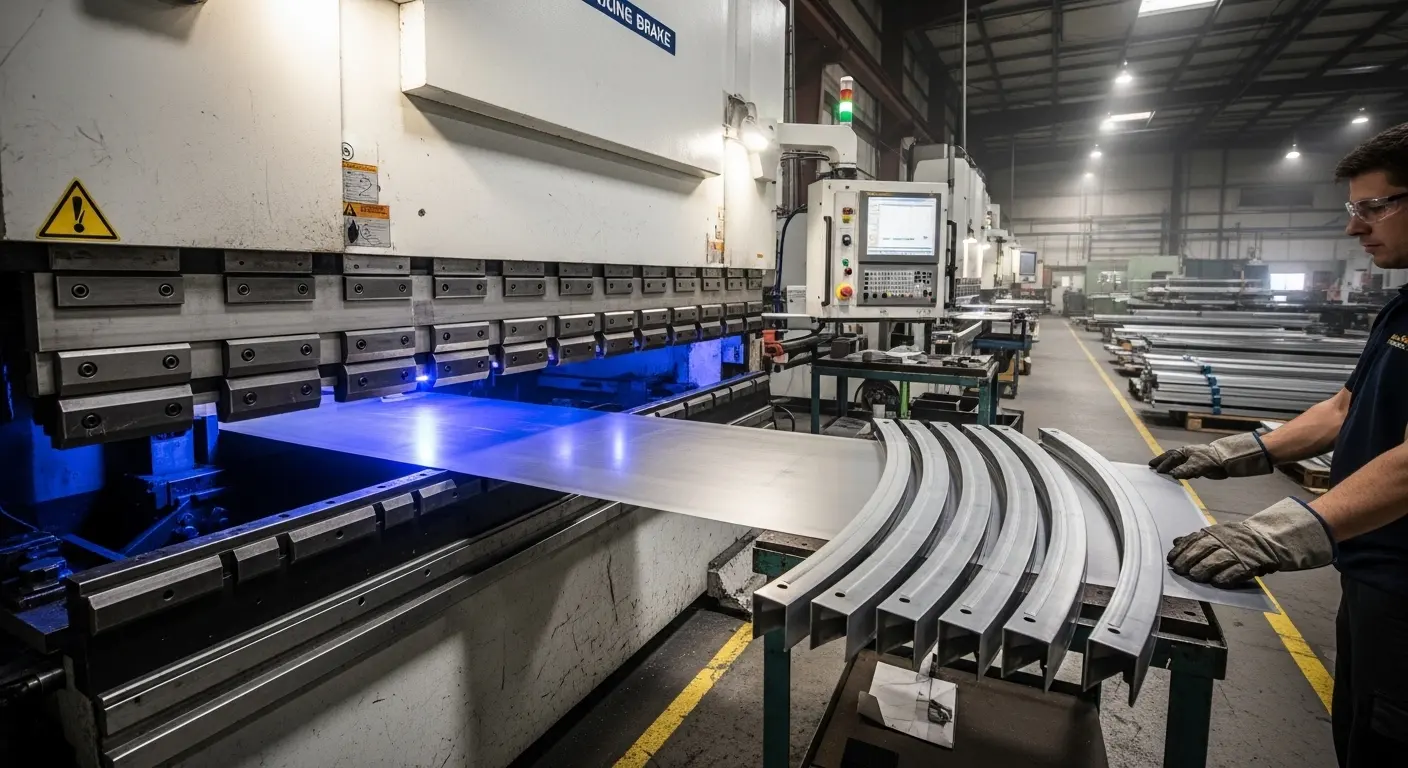

1. Machine type and stiffness
The machine itself sets the upper limit for speed and repeatability.
- 프레스 브레이크: Common for a wide variety of parts and thicknesses. High speed models have fast approach and return speeds, strong frames, and precise ram control.
- Panel benders / folding machines: Very productive for panels and boxes with many bends. They clamp the sheet and fold flanges with rotating beams, which can be faster for repeat batches.
A rigid frame and precise linear guides help maintain angle accuracy at high speed. If the frame twists, you will see angle variation across the part, and you will be forced to slow down.
2. CNC control and motion system
High speed sheet metal folding relies on a capable control system. The CNC must:
- Handle fast axis movements without overshoot
- Synchronize ram and backgauge motion
- Execute bend sequences with minimal “dead time”
- Support quick change between programs
Advanced controls also add features that directly support high speed work:
- Graphical programming and bend sequence simulation
- Collision checks between tools, 기계, 그리고
- Material libraries with bending factors, springback data, and crowning values
Modern controls like the ESA S875 press brake control focus on fast programming and stable motion, which helps you keep both speed and angle quality under control. A powerful CNC control also reduces operator stress, because the system guides the user through set-up instead of forcing them to remember every detail.
3. High speed backgauges and part support
Backgauges are critical for high speed sheet metal folding, especially when parts have many bends.
거의, multi‑axis backgauges:
- Move quickly between bend positions
- Support complex part geometries
- Reduce handling time by presenting the part in the right spot
Sheet followers and part supports also make a big difference when parts are large or heavy. They:
- Reduce the operator’s physical load
- Keep parts supported, so angles remain stable
- Prevent scratches and dents on visible surfaces
If you are planning to run long, heavy panels or façade elements at high speed, consider a 금속 패널 굽힘기 with strong backgauges and workpiece supports. This type of machine is designed for fast, repeatable folding of large panels.
4. Tooling for high speed sheet metal folding
High speed sheet metal folding requires stable, well‑maintained tools.
Key tooling aspects:
- Quick‑change tools: Reduce set‑up time between jobs.
- Hardened tools: Maintain shape at high loads and extended use.
- Precision ground: Keep angle and position repeatable across the length of the tool.
Good tooling practices for high speed sheet metal folding include:
- Standardizing tool heights and V‑groove dimensions
- Keeping a clear tool layout plan for your most common parts
- Inspecting tools regularly for wear, nicks, 또는 손상
- Cleaning tools and dies to prevent marks on visible surfaces
5. Material data and springback control
At high speed, you have less time to adjust angles on the fly. 대신, you need a reliable material database.
The control should store:
- 재료 종류 (연강, 스테인리스, 알루미늄, 등.)
- Thickness and tensile strength
- Bending allowance and springback values
With good data, the machine can:
- Calculate the correct bend depth for the desired angle
- Compensate for springback automatically
- Apply the right crowning to keep angles consistent across the length

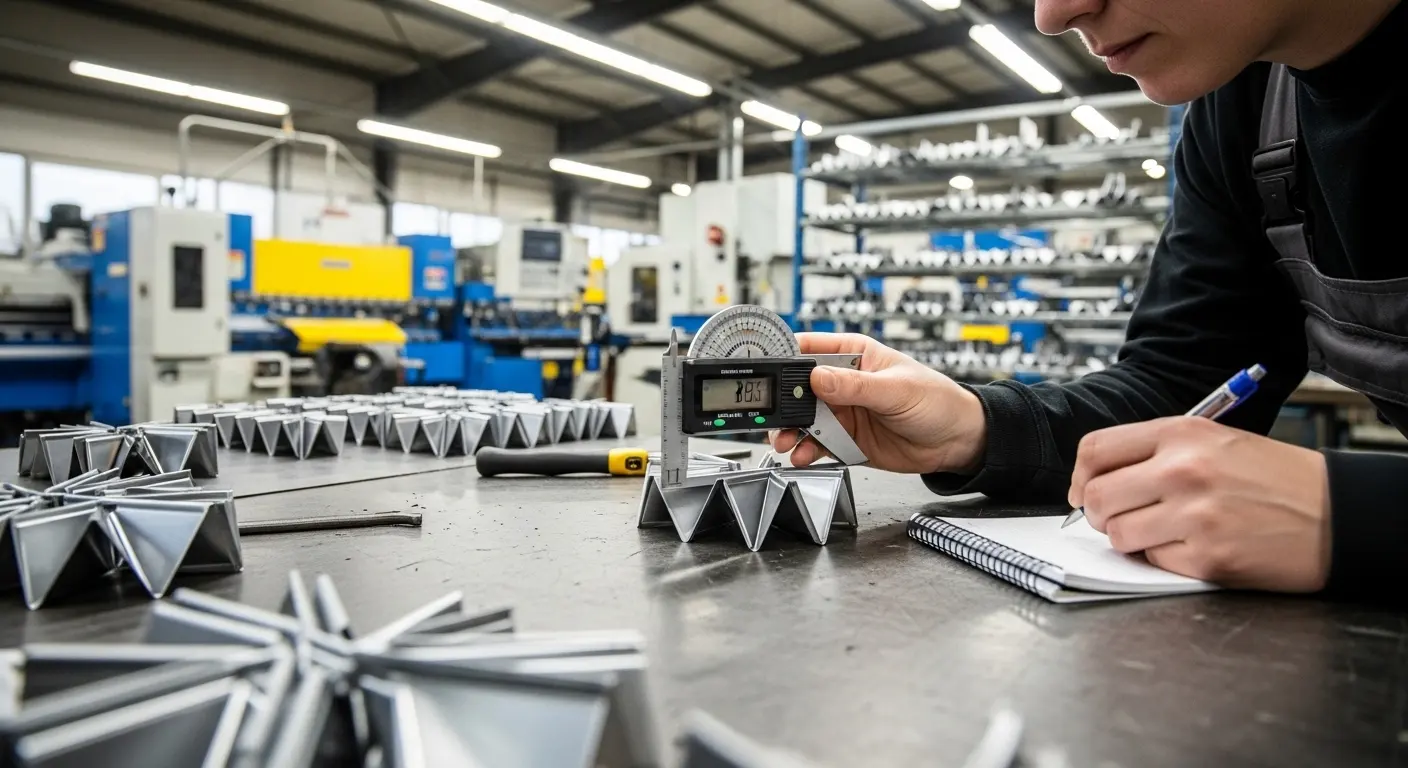

This is where experience matters. Teams that document real angles, corrections, and material heat numbers over time are able to run high speed sheet metal folding with far fewer surprises.
High speed sheet metal folding machines and controls
The choice of machine and control platform has a direct impact on how far you can push high speed sheet metal folding.
How to evaluate machines for high speed work
When comparing machines, focus on:
- Maximum approach and return speed: Faster non‑working moves reduce cycle time.
- Working speed range: Must be fast enough, but still safe for the operator.
- Ram accuracy and repeatability: Measured in microns or hundredths of a millimeter.
- Backgauge speed and axes: At least 4–6 axes for complex parts; more for advanced parts or special profiles.
- Control features: 3D programming, 자동 굽힘 순서 계산, and offline programming capabilities.
If you want to see how different brands package these features, a detailed list of top CNC press brake manufacturers is a useful reference. You can compare specifications like tonnage, stroke, table length, and control options before you request quotes.

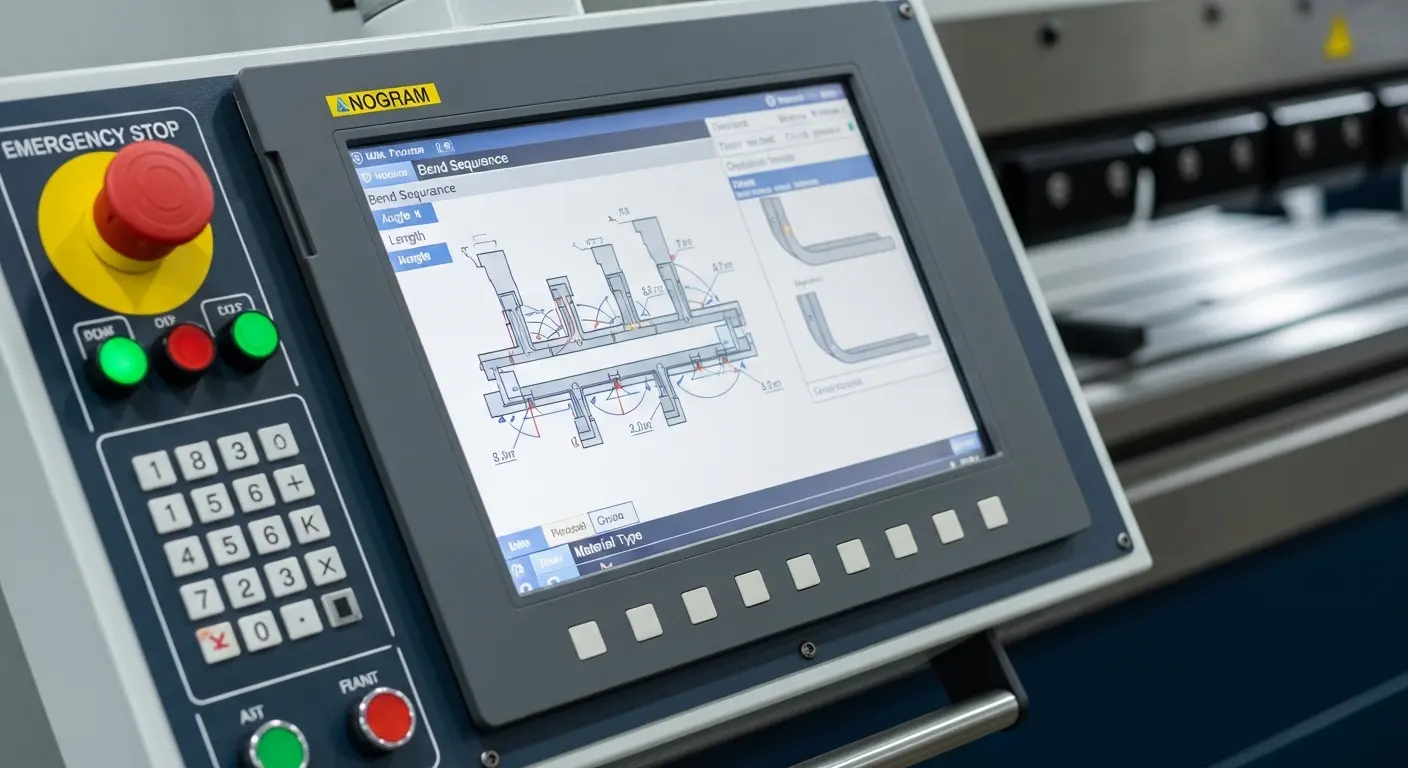

Controls designed for high speed sheet metal folding
Controls like the ESA S875 are designed to help operators:
- Program new parts quickly
- Visualize bend sequences in 2D or 3D
- Avoid collisions with automatic checks
- Use stored material data for repeat jobs
When you pair a strong control with a well‑designed 금속 패널 굽힘기 or press brake, you create a solid base for reliable high speed sheet metal folding.
Process design for high speed sheet metal folding
High speed sheet metal folding is not only about the machine. The entire process from inquiry to shipment must support fast and stable production.
1. Part and tooling standardization
첫, review your part portfolio:
- Group parts by material, 두께, 그리고 벤드 타입
- Identify families that can share the same tools and set‑ups
- Define standard bend radii and flange heights where possible
Then, build standard tool setups for each family. This reduces:
- Tool change time
- Trial bends for angle correction
- Programming complexity for operators
Standardization also helps when you talk to suppliers. You can describe your main part families clearly and compare offers more fairly.
2. Smart supplier selection
High speed sheet metal folding depends heavily on the machine supplier’s support. You want a partner, not just a vendor.
A good supplier selection checklist should cover:
- Technical support and response time
- Availability of spare parts
- Experience with similar high speed applications
- Training and documentation quality
- References from other customers in your segment
When you evaluate suppliers, ask them to demonstrate a typical part from your production at realistic speed and quality targets. This gives you a clear view of what their machine can do in practice.
3. Import and project planning
If you are importing machines, the project timeline becomes even more important.
A structured 가져오기 질문 체크리스트 can help you clarify:
- Shipping and insurance responsibilities
- Local installation and commissioning support
- Warranty terms and service coverage
- Required foundation, power, and air conditions
Answering these questions early helps you avoid delays that could push back your planned high speed sheet metal folding start date.
Best practices to achieve stable high speed sheet metal folding
Now let’s move into concrete practices you can follow to push speed while keeping control.
1. Balance speed and safety
High speed sheet metal folding must respect safety standards. As you increase speed:
- Keep all safety guards and light curtains in place.
- Train operators on safe part handling at higher pace.
- Review emergency stop functions and risk assessments.
If operators feel unsafe, they will slow down or make mistakes. 금고, clear procedures are key.
2. Use staged ramp‑up
Do not jump directly from slow prototyping to maximum speed.
대신:
- Start at a moderate speed and check angles and dimensions.
- Increase speed step by step while monitoring quality.
- Lock in the highest speed that still delivers stable results.
Record the final parameters inside your CNC program so the next operator can repeat the job without guessing.
3. Build a feedback loop
High speed sheet metal folding should include regular feedback from:
- Operators (ease of use, handling issues)
- Quality inspectors (common defects, angle trends)
- Maintenance staff (공구 마모, lubrication, backlash)
Use short daily or weekly reviews to track:
- Scrap and rework rate for each job
- Average cycle time per part
- Common root causes of defects
시간이 흐르면서, this feedback helps you refine your machine settings, 프로그램, and tooling choices.
4. Maintain machines and tools for high speed
Running at higher speeds puts more load on mechanics and tools. Preventive maintenance is essential.
Set clear intervals for:
- Lubricating guides and ball screws
- Checking backlash in backgauges
- Inspecting hydraulic oil (if applicable)
- Calibrating ram position and angles
For tools, keep a simple log of:
- When tools were last inspected
- Any damage found
- When tools were re‑ground or replaced
This avoids sudden quality drops that force you to slow down.
5. Use the right bending technology for panels
If your product range includes long façade panels, 인클로저, or cabinets, a dedicated 금속 패널 굽힘기 can lift your high speed sheet metal folding capability.
Panel benders:
- Clamp the sheet and move tools around it
- Can be more ergonomic for large parts
- Often achieve very fast cycle times on repeat batches
You can combine panel benders with press brakes in one line, where each machine type works on the steps it does best.
High speed sheet metal folding in product development
You should think about high speed sheet metal folding already in the design phase, not only once a part reaches the shop floor.
Design rules that support speed
When designing new parts:
- Keep flange heights compatible with standard tools.
- Avoid very small flanges that are hard to gauge.
- Standardize inside bend radii across families.
- Minimize tool changes within one part where possible.
Talk with your machine supplier and bending experts early. They can suggest small design changes that make high speed sheet metal folding much easier, without hurting the function of the product.
Working with specialized bending partners
If you do not want to invest in your own high speed line, you can work with a specialist. When you select a partner, the same supplier selection thinking applies: check their machines, 조작, 경력, and response time.
A structured supplier selection checklist helps you compare partners on:
- Available machines and automation level
- Typical tolerances they can hold at speed
- Capacity and lead time stability
- Communication and technical support quality
자주 묻는 질문(FAQ): 고속 판금 접기
1. What is high speed sheet metal folding?
High speed sheet metal folding is the process of bending metal parts with a focus on high throughput while maintaining angle accuracy, 반복성, and surface quality.
2. Which machines are best for high speed sheet metal folding?
CNC press brakes and panel bending machines with fast ram and backgauge motion, strong frames, and advanced controls are best suited for high speed sheet metal folding.
3. How can I improve high speed sheet metal folding quality?
Use precise tools, maintain a reliable material database, standardize part families and tool setups, and keep your machines well maintained.
4. Does high speed sheet metal folding always require automation?
아니요, you can increase speed with better tools, 프로그램, and processes, even without robots. Automation helps further, but it is not the only lever.
5. What should I ask suppliers before buying a high speed bending machine?
Use an 가져오기 질문 체크리스트 그리고supplier selection checklist to cover technical support, 예비 부품, 훈련, 보증, logistics, and proof of performance on your own part samples.
