유럽형 프레스 브레이크 금형: 사양, 호환성 & 구매자 가이드
유럽형 프레스 브레이크 금형 기계는 13mm 탱 유럽 정밀 표준을 사용하며, 이는 유럽 제작 작업장에서 가장 널리 채택된 프레스 브레이크 금형 시스템입니다. Most buyers already know the tooling name. What they need is the machine-side compatibility checklist that confirms a new press brake genuinely accepts their existing European tooling inventory — before commissioning day.
The metalworking machinery market reached $298.19 10억 달러 2025, growing at 6.9% 연평균 성장률, and European buyers increasingly source CNC press brakes from alternative manufacturers at significantly lower cost than Wila, 비스트로닉, or Trumpf OEM. For a full view of RAGOS tooling options compatible with European-type machines, visit our press brake tooling page.
This guide covers European Precision dimensional specs, a 3-system comparison table, a 5-point machine-side compatibility checklist, quick-change system selection, and RAGOS machine configurations for European tooling buyers.
What Is a European Type Press Brake Tooling Machine?
A European type press brake tooling machine is a CNC press brake whose punch holder and die rail are configured for the European Precision standard — a 13mm wide tang with a rectangular clamping groove and offset force distribution along the tool length.
Four specifications define the standard:

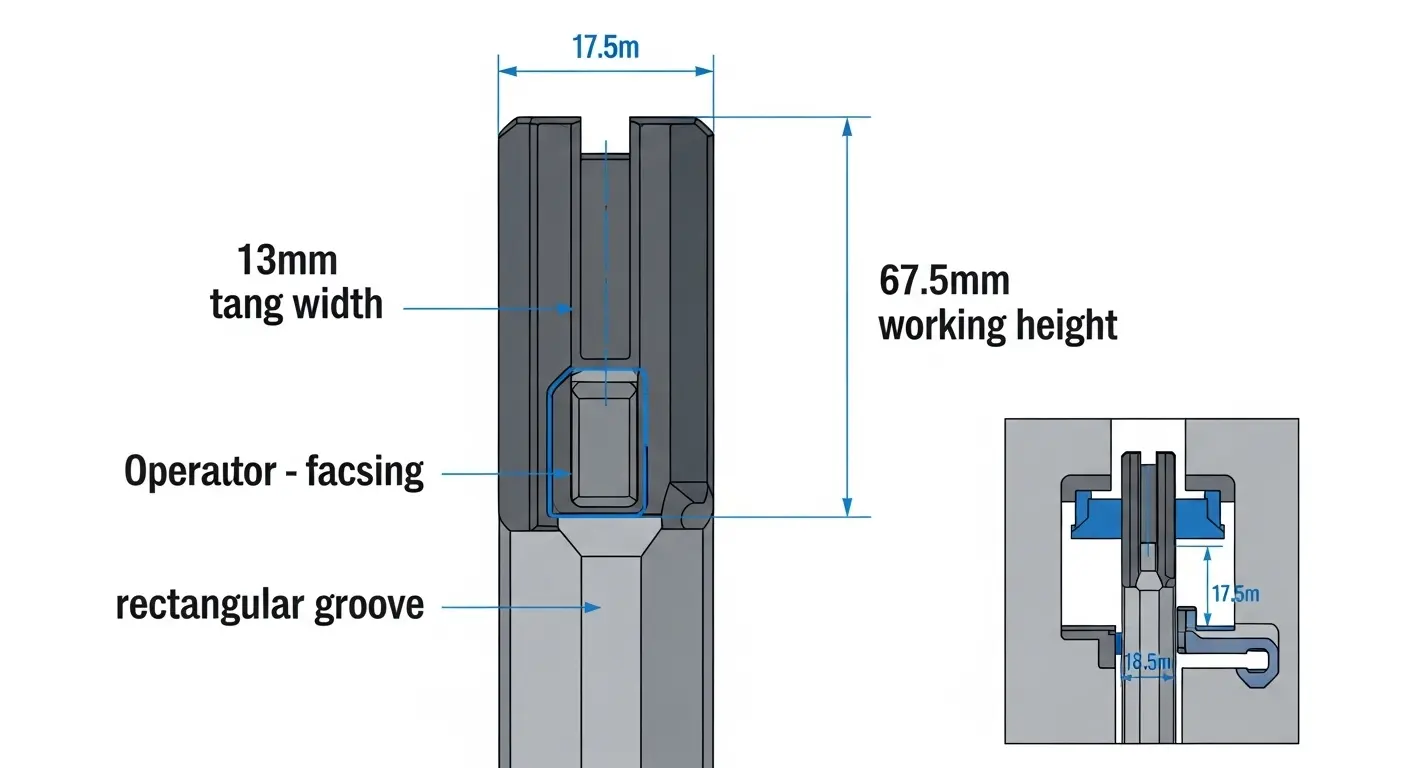

- 13mm punch tang width — the primary compatibility dimension; the receiver inside the press brake ram is machined to this exact width
- Rectangular groove, operator-facing side — the groove engages the holder's clamping mechanism, providing secure locking under load
- Offset force application — bending force distributes along the full tool length rather than concentrating at the tip, reducing localized deflection on long profiles
- Standard working heights: 67.5밀리미터 (2.66") or 89.7mm (3.53") — two fixed-height standards that determine ram stroke clearance requirements on the machine
"European type," "European Precision," 그리고 "Promecam" are used interchangeably across the industry. The Promecam system is the original French standard that became the European industry default — every press brake built to this receiver specification accepts tooling from all compatible suppliers.
European Precision vs. Wila/Trumpf vs. American Style — Key Differences

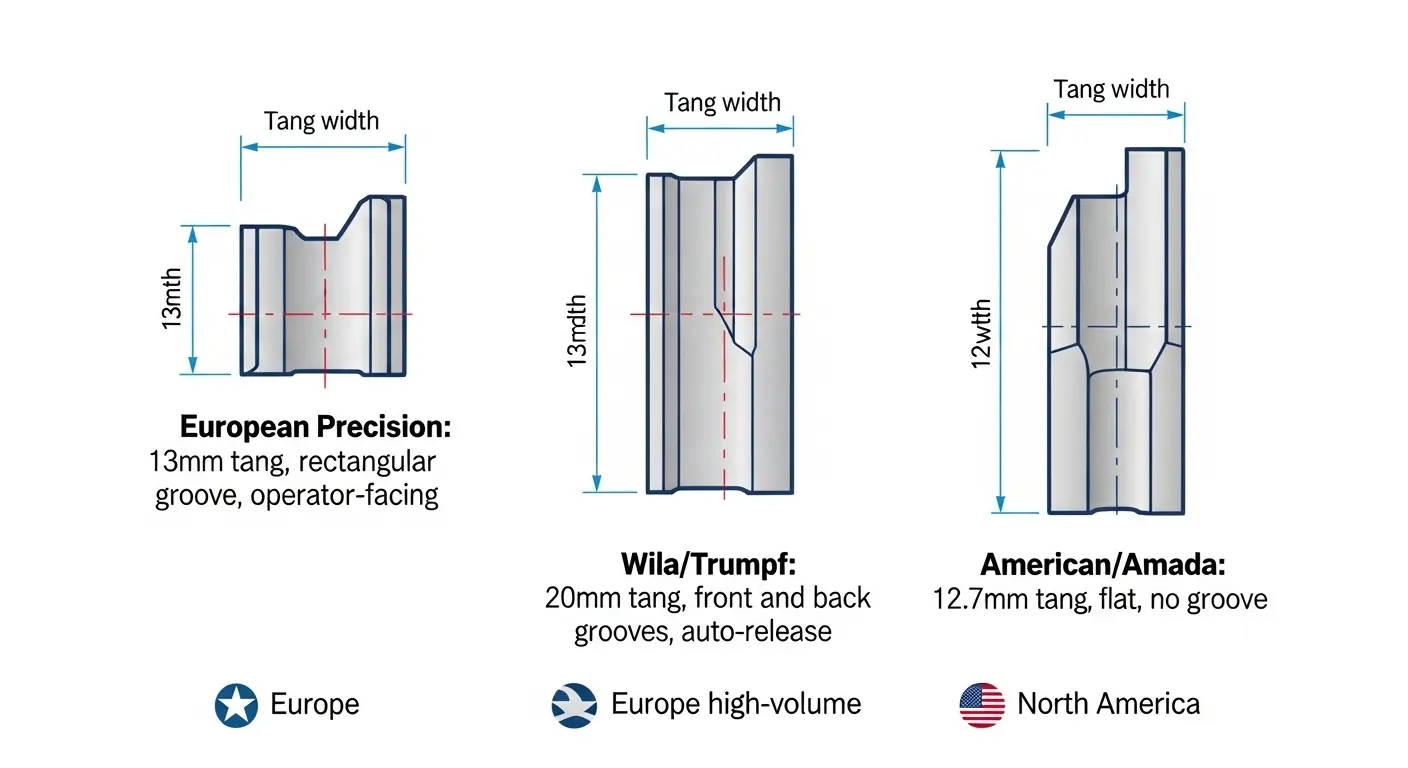

Three press brake tooling systems are used globally: European Precision (13mm tang), 윌라/트럼프 (20mm tang), and American/Amada style (12.7mm tang). The three systems are not interchangeable. Each requires a specific machine receiver and holder configuration — a 13mm European Precision punch will not fit a 20mm Wila/Trumpf holder and vice versa.
| 특징 | European Precision | 윌라/트럼프 | 미국 (아마다) |
|---|---|---|---|
| Tang width | 13밀리미터 | 20밀리미터 | 12.7밀리미터 (0.5 inch) |
| Groove type | Rectangular, operator-facing | Front and back grooves | No groove, flat tang |
| Force application | Offset — distributed | Offset — hydraulic/pneumatic | Direct, linear |
| Quick-change system | Mechanical or manual clamp | Hydraulic/pneumatic auto | Manual clamp |
| Setup speed | Medium to fast | Fastest | 더 느리게 |
| Market dominance | 유럽 | 유럽 (high-volume shops) | 북미 |
| Tooling cost | 중도 | 높은 | 아래 |
| Accuracy class | ±0.01mm | ±0.005mm | ±0.025mm |
Both European Precision and Wila/Trumpf are "European type" 시스템. That said, they are distinct sub-systems with different tang widths and holder types. Buyers must confirm which European sub-system their machine uses before purchasing tooling. Ordering 13mm European Precision tooling for a 20mm Wila/Trumpf holder is the most common and costly compatibility error.

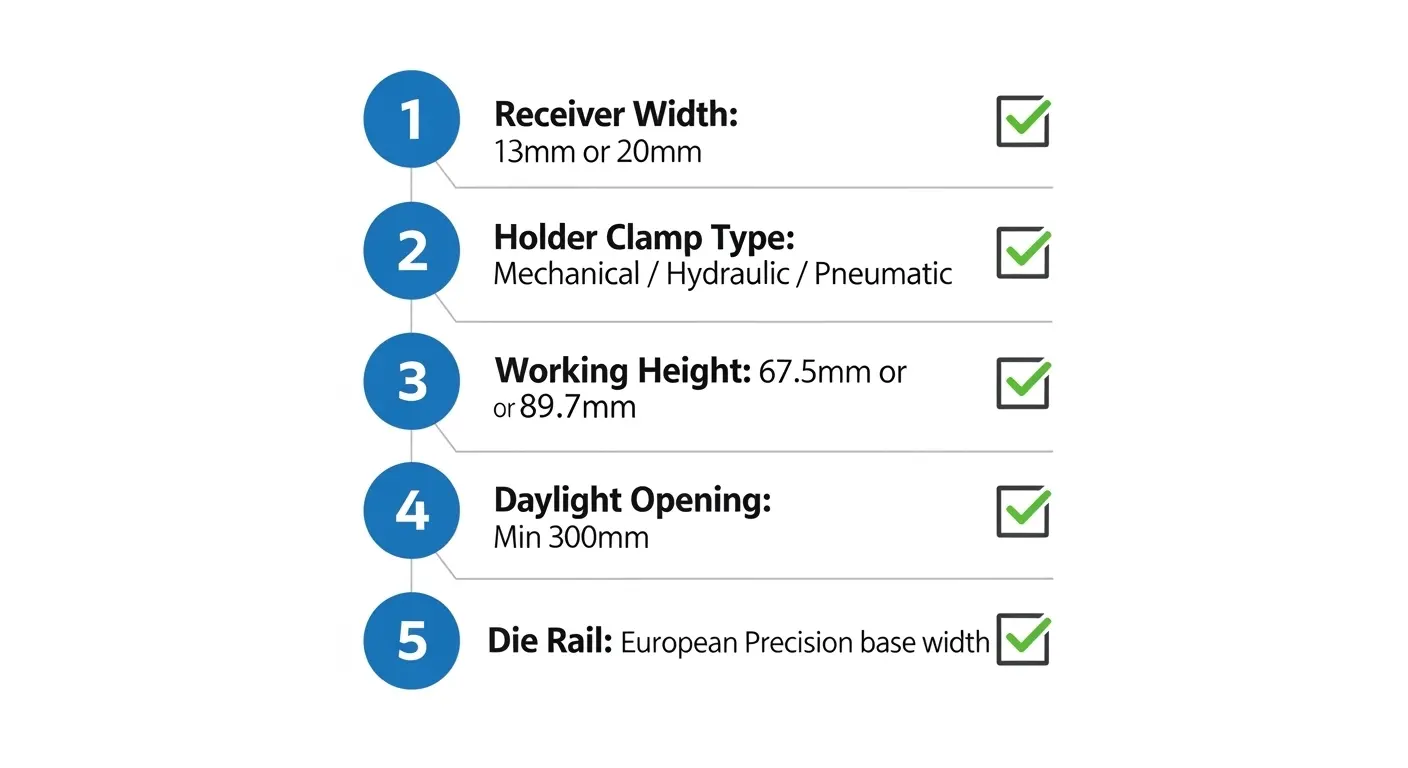

Machine-Side Compatibility Checklist — 5 Things to Verify Before Buying
Before purchasing any press brake described as European-type tooling compatible, verify these five machine-side specifications against the technical data sheet. Every point below corresponds to a real machine dimension or mechanical requirement — not a marketing description.
1. Receiver/holder width: 13mm for European Precision or 20mm for Wila/Trumpf
Confirm the machine's punch seat matches your tooling sub-system. A 13mm European Precision punch cannot seat in a 20mm Wila/Trumpf receiver and vice versa. Ask for the receiver drawing, not just the label "European type."
2. Holder clamp type: 기계적인, 수력의, or pneumatic
European Precision typically uses a mechanical lever or manual clamp. Wila/Trumpf uses hydraulic or pneumatic auto-release. Confirm which your tooling system requires. A mechanical holder will not auto-release Wila/Trumpf tooling correctly, even if the tang fits.
3. Working height clearance: 67.5mm or 89.7mm
The machine's ram stroke and tool clamp position must accommodate the standard working height of your tooling stack. This is the most commonly missed compatibility check at commissioning. Always confirm working height alongside tang width — not as an afterthought.
4. Daylight opening: minimum 300mm
The daylight opening (distance between ram face and die table) must accommodate punch height plus material thickness plus die height. For standard European Precision tooling stacks, 300mm is the practical minimum. Request the machine's full daylight specification in millimetres.
5. Die rail: 플랫, self-centering, or adjustable
European Precision dies use a standardised base width. Confirm the die rail accepts this base dimension without adapter blocks. Non-standard die rails require spacers that add setup complexity and potential alignment error.
In our experience supplying European-compatible CNC press brakes to shops in Germany, the Netherlands, and the UK, working height mismatch is the most common commissioning issue — not tang width. Buyers confirm the tang and assume the rest. Always verify items 3 그리고 4 on this checklist before approving shipment.
Why Working Height Matters More Than Tang Width
Tang width is the entry requirement for tooling fit. Working height determines whether the complete tooling stack clears the ram stroke correctly. A 13mm tang will seat in the correct receiver — but if the punch body height exceeds the machine's daylight opening minus material and die height, the ram cannot complete the bend stroke. Always request the machine's minimum and maximum daylight opening alongside the tang specification. RAGOS confirms working height clearance for European tooling configurations on every order before dispatch.
European Type Press Brake Tooling — Dimensional Standards
European Precision tooling follows consistent dimensional standards across all compatible suppliers. The table below provides the technical reference for both European sub-systems.
| 사양 | European Precision (13밀리미터) | 윌라/트럼프 (20밀리미터) |
|---|---|---|
| Tang width | 13밀리미터 | 20밀리미터 |
| Tang groove | Rectangular, operator-facing | Front and back grooves |
| Standard working height | 67.5밀리미터 (2.66") or 89.7mm (3.53") | Varies by holder system |
| Die base width | Standardised — interchangeable across brands | Proprietary per Wila/Trumpf specification |
| Accuracy class | ±0.01mm | ±0.005mm |
| Force application | Offset — distributed along tool length | Offset — hydraulic/pneumatic |
| 가장 적합한 | Standard CNC production, HVAC, 인클로저, 자동차 | High-precision aerospace, 전자공학, 의료 |
European Precision tooling at ±0.01mm tolerance is correct for CNC production bending on standard fabrication profiles — automotive brackets, HVAC 패널, 전기 인클로저, and structural sections. Wila/Trumpf at ±0.005mm is specified for aerospace, medical device, and precision electronics work where angular tolerance is critical on every bend. For shops needing European-type tooling kits alongside a new machine, visit the RAGOS press brake kits page.
Quick-Change Systems for European Type Press Brake Tooling
Quick-change tooling reduces setup time by up to 50% vs. manual clamp systems on high-mix production runs. For European type tooling, three quick-change approaches are available — each suited to a different production frequency and budget.
Three Quick-Change Options
Mechanical lever clamp
Standard on most European Precision-compatible press brakes. Fast manual release with no additional hydraulic or pneumatic infrastructure required. Suited to shops with moderate changeover frequency — typically 3–10 setups per shift. This is the most common configuration on new European-type press brakes from alternative manufacturers.
Hydraulic quick-change
Native to Wila/Trumpf systems. Near-automatic tool release controlled by the machine's hydraulic circuit. Best for shops with 10 or more setups per shift. The machine cost is higher, but labour savings on high-mix operations recover the premium within 6–12 months.
Pneumatic quick-change (aftermarket)
Available as an upgrade on some European Precision-compatible machines. Faster than mechanical, lower cost than full hydraulic. Suitable for shops that have outgrown a mechanical clamp but are not ready for a full Wila/Trumpf system. Requires a compressed air supply at the machine.
Based on feedback from European shop buyers, shops running five or more job changeovers per shift recover the cost of a hydraulic or pneumatic quick-change upgrade within 6–12 months through reduced setup labour alone. For RAGOS hydraulic CNC press brake options compatible with European tooling, visit our best CNC hydraulic press brake page.
RAGOS CNC Press Brakes for European Type Tooling
RAGOS CNC press brakes are available in European-type tooling configurations — both European Precision (13mm tang) and Wila/Trumpf-compatible (20mm tang) receiver setups — built to the same dimensional standards used by European OEM manufacturers.
Machine-Side Specs Confirmed on Every European-Type Order
Five machine-side specifications are confirmed on every RAGOS European-type configuration before dispatch:
- Receiver width: 13밀리미터 (European Precision) or 20mm (윌라/트럼프) — confirmed on drawing
- Holder clamp: mechanical lever (standard) or hydraulic/pneumatic (on request)
- Working height clearance: 67.5mm and 89.7mm stack confirmed with ram stroke calculation
- Daylight opening: minimum 350mm on standard configurations
- Die rail: European Precision standardised base width as standard
Every RAGOS machine ships with CE Declaration of Conformity and ISO 9001 인증. For European buyers, dedicated supply chain options cover EU freight, customs documentation, and CE compliance. For European buyers, visit the RAGOS Europe press brake supplier page. For international buyers outside Europe requiring European-type tooling compatibility, visit our international CNC press brake supplier page.
Tell us your tooling sub-system (13mm European Precision or 20mm Wila/Trumpf), required tonnage, 침대 길이, and working height. We will confirm machine-side compatibility and send a full specification sheet within 24 시간.
자주 묻는 질문
질문 1: What is a European type press brake tooling machine?
A European type press brake tooling machine is a CNC press brake configured for the European Precision standard — a 13mm wide punch tang with a rectangular clamping groove, offset force distribution, and standard working heights of 67.5mm or 89.7mm. It is the dominant press brake tooling system across European fabrication shops. The machine's punch holder and die rail are built to accept 13mm tang tooling from all European Precision-compatible suppliers, including Wilson Tool, Mate Precision, Jeelix, and Ketec. For compatible tooling options, visit the RAGOS press brake tooling page.
질문 2: What is the difference between European Precision and Wila Trumpf press brake tooling?
European Precision tooling uses a 13mm wide tang with a rectangular groove on the operator-facing side and a mechanical or manual clamp holder. Wila/Trumpf tooling uses a 20mm wide tang with grooves at both front and back, paired with hydraulic or pneumatic auto-release holders. The two systems are not interchangeable — a 13mm European Precision punch will not fit a 20mm Wila/Trumpf holder. European Precision suits standard CNC production at moderate changeover frequency. Wila/Trumpf is specified for high-volume, high-mix shops requiring near-automatic tool changes. For European-compatible RAGOS press brake options, visit the Europe press brake supplier page.
질문 3: What is a 13mm tang press brake?
A 13mm tang press brake is a press brake whose punch holder is machined to accept the European Precision standard — punches with a 13mm wide tang and a rectangular clamping groove on the operator-facing side. It is the most common European-style press brake configuration. The 13mm tang engages the receiver and locks under the holder's clamp mechanism, providing secure tool positioning during CNC bending operations. All RAGOS press brakes in European-type configuration use a 13mm receiver as standard. For custom configurations, visit the RAGOS custom press brake machine supplier page.
Q4: What is offset force design in European press brake tooling?
Offset force design means the bending force distributes along the full length of the tool rather than concentrating directly at the tip, as in American-style tooling. This reduces localized deflection and improves angular consistency across the full bend length — particularly on profiles longer than 500mm. European Precision and Wila/Trumpf systems both use offset force application, making them the preferred choice for long or complex profiles where angle consistency over the full bed length is critical. For the full RAGOS CNC press brake range, visit the sheet metal CNC press brake for sale page.
질문 5: What is the Promecam tooling standard?
Promecam is the original French press brake manufacturer whose 13mm tang tooling design became the European industry default and is now called the European Precision standard. 오늘, "Promecam standard," "European Precision," 그리고 "European style" all refer to the same 13mm tang with rectangular groove system. Any press brake built to the Promecam/European Precision receiver specification accepts tooling from all compatible suppliers without modification. For RAGOS press brake kits with European-type compatible tooling, visit the RAGOS press brake kits page.
What the European Tooling Decision Comes Down To
Three facts define the European type press brake tooling machine decision. 첫: European Precision (13밀리미터) and Wila/Trumpf (20밀리미터) are both European systems — but not interchangeable. Confirm which sub-system your existing tooling uses before specifying a machine. 둘째: the machine-side checklist matters as much as the tooling-side specs — receiver width, holder type, working height, daylight opening, and die rail base width must all be confirmed before approving a purchase. 셋째: RAGOS CNC press brakes are available in both 13mm and 20mm European configurations, CE certified, and ready for European buyers with working height clearance confirmed on every unit before shipment.
